Minimal model genetic algorithm¶

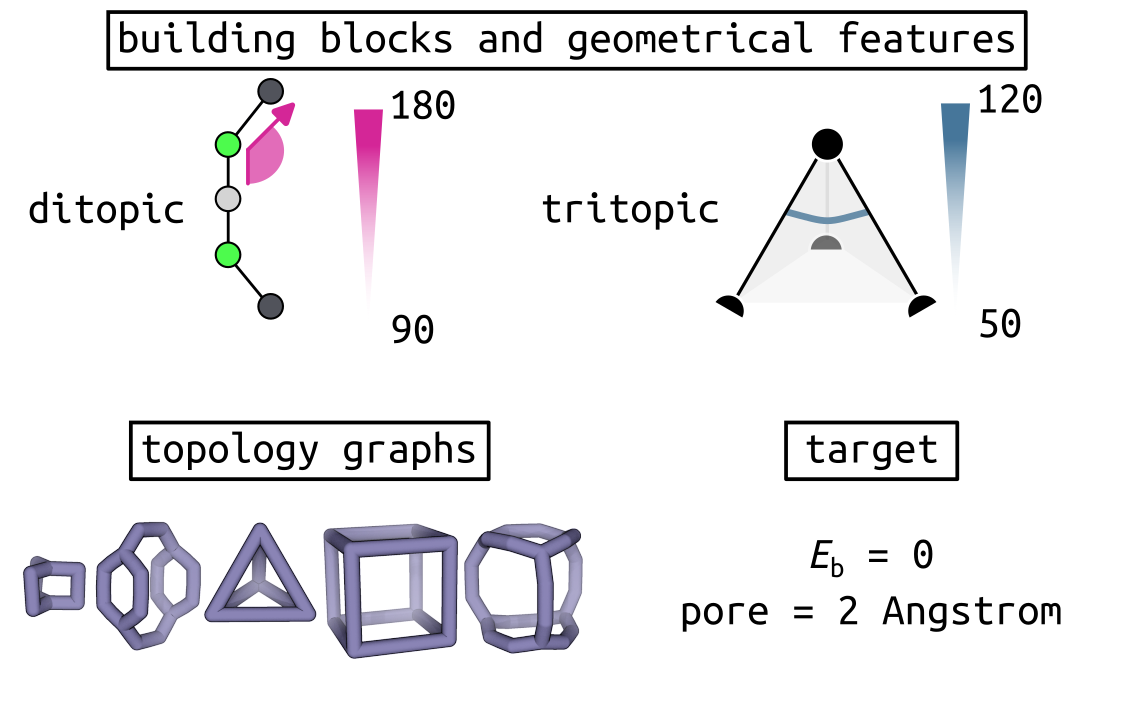

In this recipe, I will perform genetic algorithm-based optimisation of minimal models of ditopic and tritopic building blocks and targetting a pore size of 2 Angstrom. The optimisation is over the building block angles, and cage topology graph.
We first define a chromosome of one pair of building blocks, with a range of forcefield parameters and multiple topology graph choices.
# Define a database, and a prefix for naming structure, forcefield and
# output files.
prefix = "opt"
database_path = data_dir / "test.db"
database = cgx.utilities.AtomliteDatabase(database_path)
# Define beads.
bead_library = cgx.molecular.BeadLibrary.from_bead_types(
# Type and coordination.
{"a": 3, "b": 2, "c": 2, "o": 2}
)
# Define the chromosome generator, holding all the changeable genes.
chromo_it = cgx.systems_optimisation.ChromosomeGenerator(
prefix=prefix,
present_beads=bead_library.get_present_beads(),
vdw_bond_cutoff=2,
)
chromo_it.add_gene(
iteration=(
("2P3", stk.cage.TwoPlusThree),
("4P6", stk.cage.FourPlusSix),
("4P62", stk.cage.FourPlusSix2),
("6P9", stk.cage.SixPlusNine),
("8P12", stk.cage.EightPlusTwelve),
),
gene_type="topology",
)
# Set some basic building blocks up. This should be run by an algorithm
# later.
chromo_it.add_gene(
iteration=(
cgx.molecular.TwoC1Arm(
bead=bead_library.get_from_type("b"),
abead1=bead_library.get_from_type("c"),
),
),
gene_type="precursor",
)
chromo_it.add_gene(
iteration=(
cgx.molecular.ThreeC1Arm(
bead=bead_library.get_from_type("a"),
abead1=bead_library.get_from_type("o"),
),
),
gene_type="precursor",
)
definer_dict = {
# Bonds.
"ao": ("bond", 1.5, 1e5),
"bc": ("bond", 1.5, 1e5),
"co": ("bond", 1.0, 1e5),
"cc": ("bond", 1.0, 1e5),
"oo": ("bond", 1.0, 1e5),
# Angles.
"ccb": ("angle", 180.0, 1e2),
"ooc": ("angle", 180.0, 1e2),
"occ": ("angle", 180.0, 1e2),
"ccc": ("angle", 180.0, 1e2),
"oco": ("angle", 180.0, 1e2),
"aoc": ("angle", 180.0, 1e2),
"aoo": ("angle", 180.0, 1e2),
"bco": ("angle", tuple(i for i in range(90, 181, 5)), 1e2),
"cbc": ("angle", 180.0, 1e2),
"oao": ("angle", tuple(i for i in range(50, 121, 5)), 1e2),
# Torsions.
"ocbco": ("tors", "0134", 180, 50, 1),
# Nonbondeds.
"a": ("nb", 10.0, 1.0),
"b": ("nb", 10.0, 1.0),
"c": ("nb", 10.0, 1.0),
"o": ("nb", 10.0, 1.0),
}
chromo_it.add_forcefield_dict(definer_dict=definer_dict)
Now we can define the genetic algorithm:
# Define fitness calculator.
fitness_calculator = cgx.systems_optimisation.FitnessCalculator(
# Not showing this, as in the docs, we have skipped steps, but the
# downloadable script has it all!
fitness_function=fitness_function,
chromosome_generator=chromo_it,
structure_output=struct_output,
calculation_output=calc_dir,
database_path=database_path,
options={},
)
# Define structure calculator.
structure_calculator = cgx.systems_optimisation.StructureCalculator(
# Not showing this, as in the docs, we have skipped steps, but the
# downloadable script has it all!
structure_function=structure_function,
structure_output=struct_output,
calculation_output=calc_dir,
database_path=database_path,
options={},
)
# This is a very short run for testing sake, but modify these settings
# for further exploration.
seeds = [4]
num_generations = 10
selection_size = 5
num_processes = 1
num_to_operate = 2
for seed in seeds:
generator = np.random.default_rng(seed)
initial_population = chromo_it.select_random_population(
generator,
size=selection_size,
)
# Yield this.
generations = []
generation = cgx.systems_optimisation.Generation(
chromosomes=initial_population,
fitness_calculator=fitness_calculator,
structure_calculator=structure_calculator,
num_processes=num_processes,
)
generation.run_structures()
_ = generation.calculate_fitness_values()
generations.append(generation)
for generation_id in range(1, num_generations + 1):
logger.info("doing generation %s of seed %s", generation_id, seed)
logger.info(
"initial size is %s.", generation.get_generation_size()
)
logger.info("doing mutations.")
merged_chromosomes = []
merged_chromosomes.extend(
chromo_it.mutate_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
gene_range=chromo_it.get_term_ids(),
selection="random",
num_to_select=num_to_operate,
database=database,
)
)
merged_chromosomes.extend(
chromo_it.mutate_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
gene_range=chromo_it.get_topo_ids(),
selection="random",
num_to_select=num_to_operate,
database=database,
)
)
merged_chromosomes.extend(
chromo_it.mutate_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
gene_range=chromo_it.get_prec_ids(),
selection="random",
num_to_select=num_to_operate,
database=database,
)
)
merged_chromosomes.extend(
chromo_it.mutate_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
gene_range=chromo_it.get_term_ids(),
selection="roulette",
num_to_select=num_to_operate,
database=database,
)
)
merged_chromosomes.extend(
chromo_it.mutate_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
gene_range=chromo_it.get_topo_ids(),
selection="roulette",
num_to_select=num_to_operate,
database=database,
)
)
merged_chromosomes.extend(
chromo_it.mutate_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
gene_range=chromo_it.get_prec_ids(),
selection="roulette",
num_to_select=num_to_operate,
database=database,
)
)
merged_chromosomes.extend(
chromo_it.crossover_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
selection="random",
num_to_select=num_to_operate,
database=database,
)
)
merged_chromosomes.extend(
chromo_it.crossover_population(
chromosomes={
f"{chromosome.prefix}"
f"_{chromosome.get_separated_string()}": chromosome
for chromosome in generation.chromosomes
},
generator=generator,
selection="roulette",
num_to_select=num_to_operate,
database=database,
)
)
# Add the best 5 to the new generation.
merged_chromosomes.extend(generation.select_best(selection_size=5))
generation = cgx.systems_optimisation.Generation(
chromosomes=chromo_it.dedupe_population(merged_chromosomes),
fitness_calculator=fitness_calculator,
structure_calculator=structure_calculator,
num_processes=num_processes,
)
logger.info("new size is %s.", generation.get_generation_size())
# Build, optimise and analyse each structure.
generation.run_structures()
_ = generation.calculate_fitness_values()
# Add final state to generations.
generations.append(generation)
# Select the best of the generation for the next generation.
best = generation.select_best(selection_size=selection_size)
generation = cgx.systems_optimisation.Generation(
chromosomes=chromo_it.dedupe_population(best),
fitness_calculator=fitness_calculator,
structure_calculator=structure_calculator,
num_processes=num_processes,
)
logger.info("final size is %s.", generation.get_generation_size())
# Output best structures as images.
best_chromosome = generation.select_best(selection_size=1)[0]
best_name = (
f"{best_chromosome.prefix}_"
f"{best_chromosome.get_separated_string()}"
)
logger.info("top scorer is %s (seed: %s)", best_name, seed)

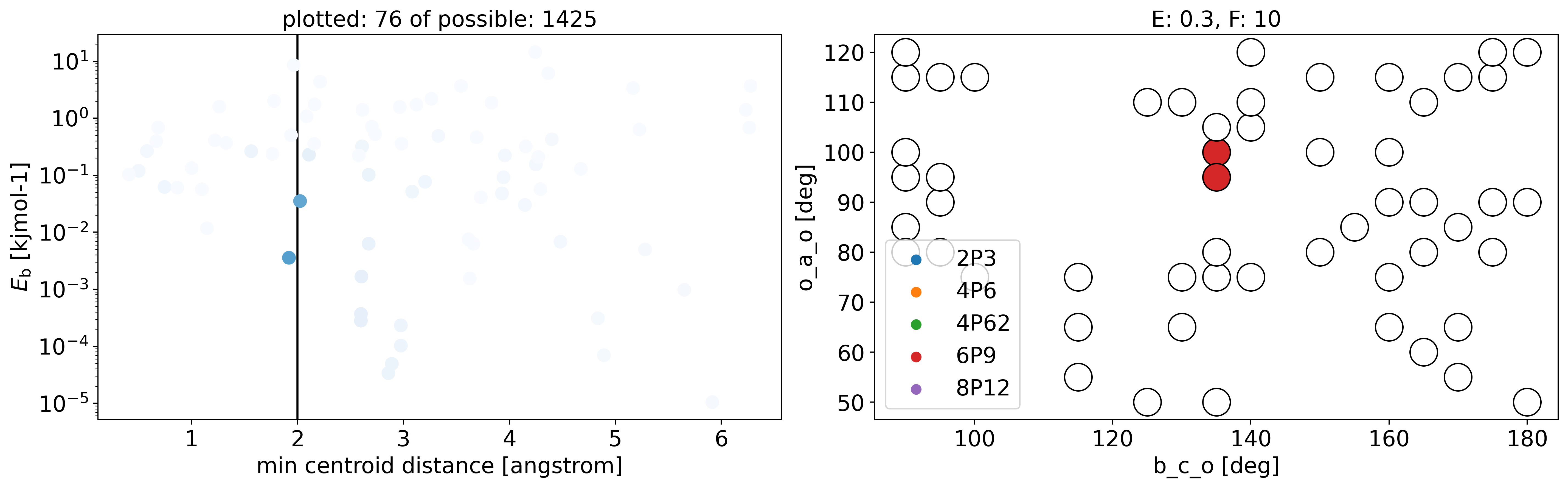

And now we can analyse the space we have explored (code in the downloadable file)!
With a top scorer:
And we can use chemiscope to explore this map interactively!
